Graco

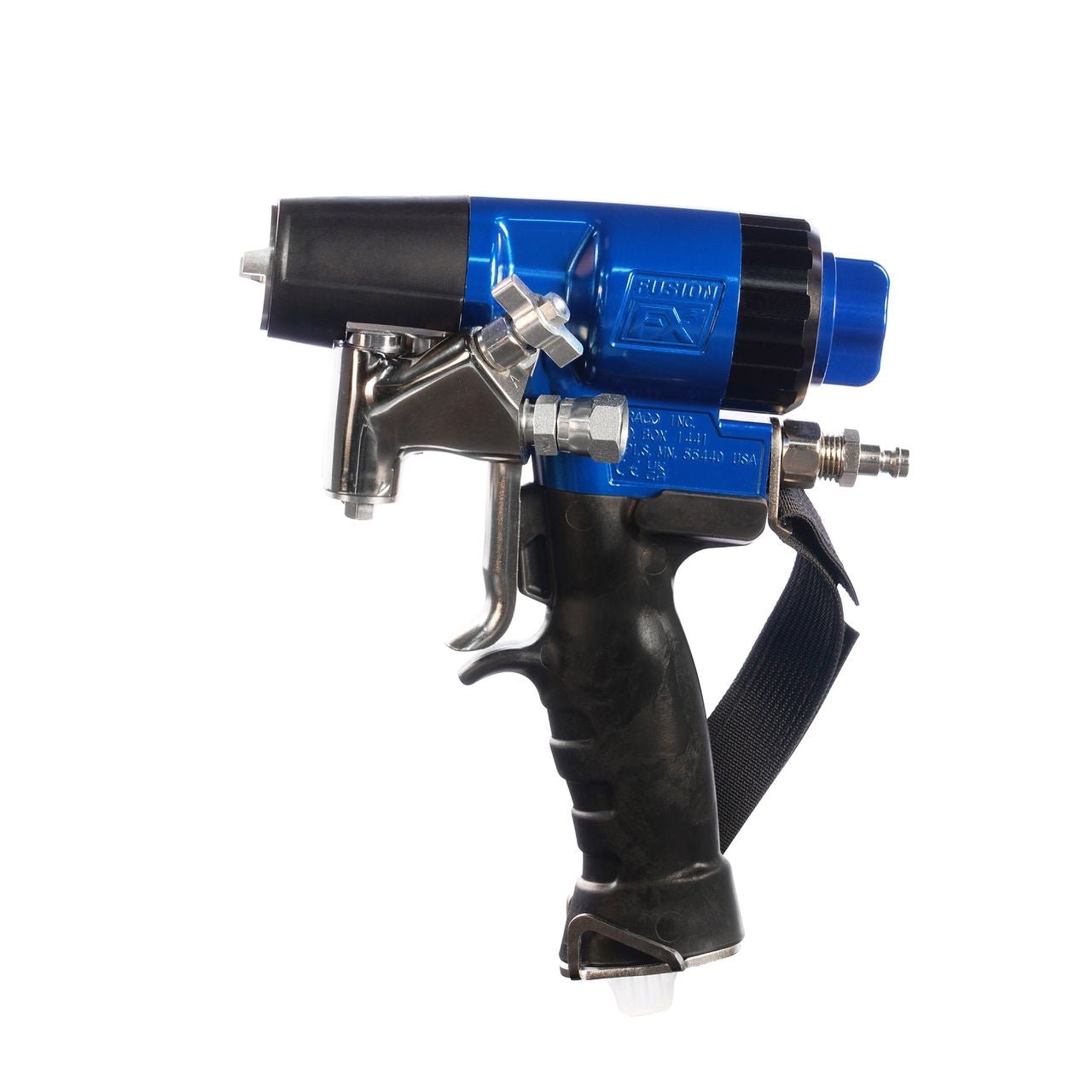

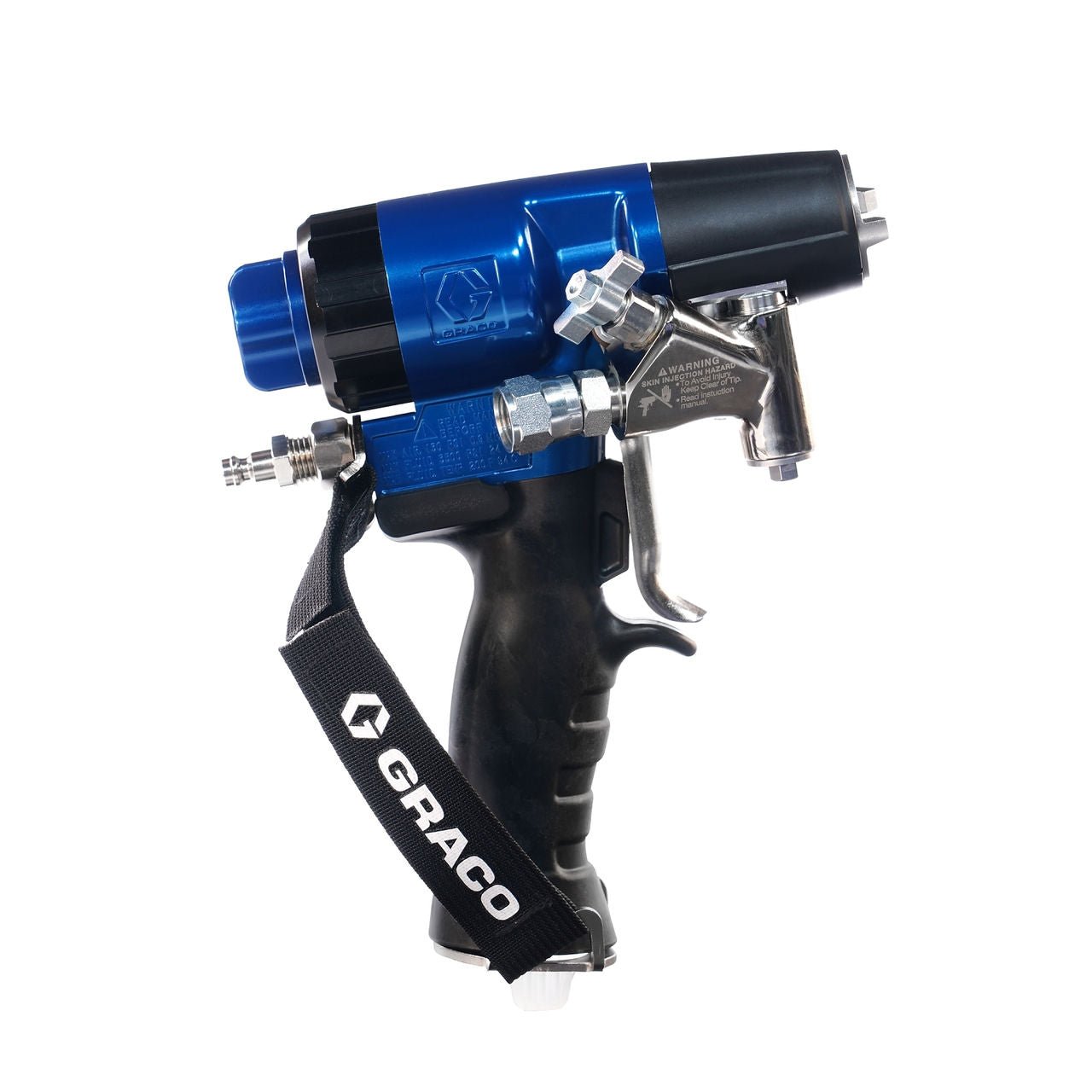

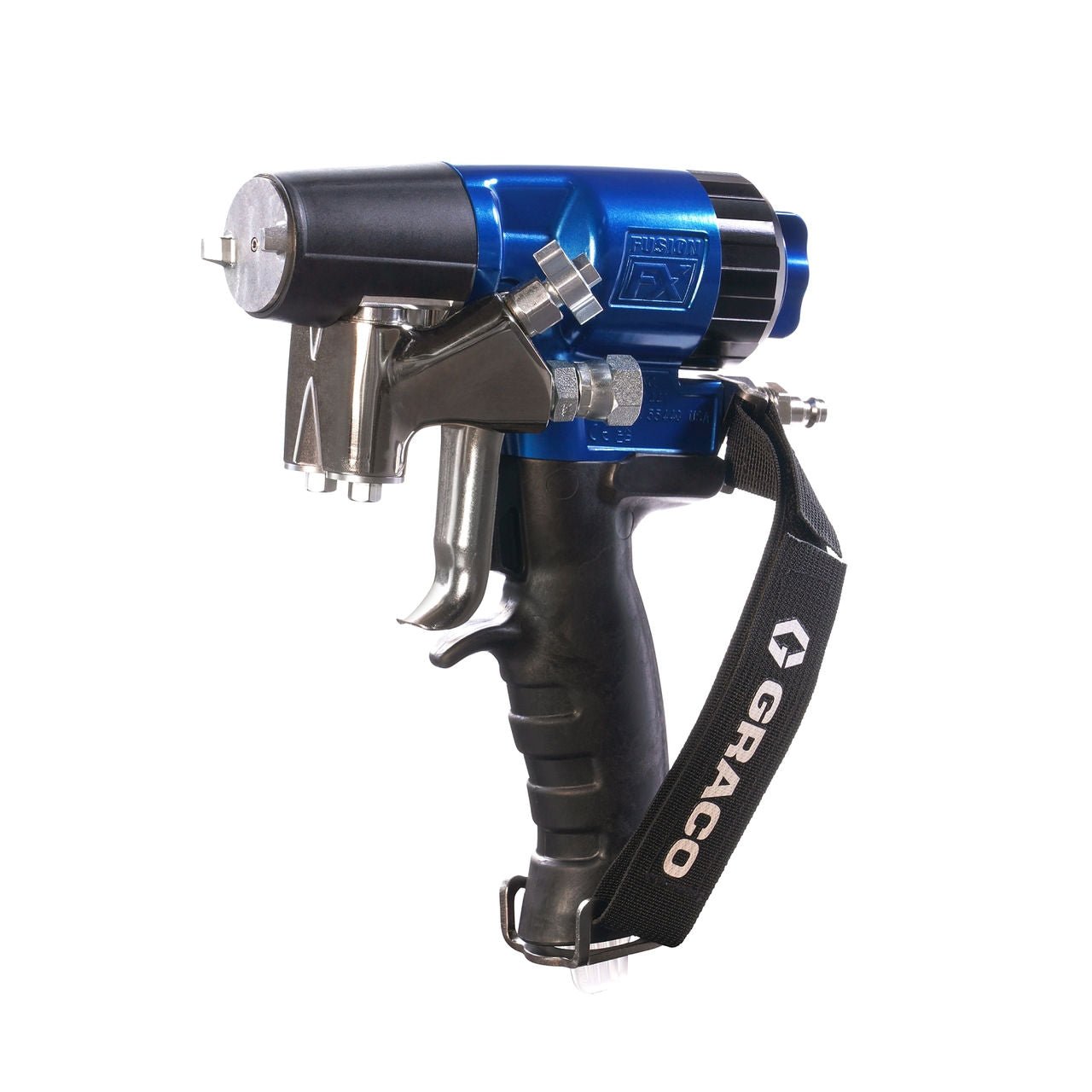

Fusion FX Gun
Packages
Fusion FX Gun
No Mix Chamber Included
Toronto
291 Clements Road West
Ajax ON L1S 3W7
Canada
Montreal
9605 Rue Ignace
Suite J
Brossard QC J4Y 2P3
Canada
Calgary
4450 50 Avenue Southeast
Calgary AB T2B 3R4
Canada
Vancouver
68 Schooner Street
Unit #4
Coquitlam BC V3B 7B1
Canada
Edmonton
7503 Girard Road Northwest
Edmonton AB T6B 2H2
Canada
2.6
Weight (lbs)
3500
Max Pressure (psi)
50
Max Flow Rate (lbs/min)
200
Max Fluid Tempurature (°F)
Air
Purge Type
Introducing the Fusion FX: the smallest, lightest, and best-balanced spray gun in the industry. Equipped with innovative spray technology, it revolutionizes the way you spray. Graco’s new Fusion FX gun is meticulously designed from the ground up, ensuring ease of maintenance and unparalleled comfort. Perfect for spray foam and polyurea applications, this gun sets a new standard in the market.
Smallest, Lightest, & Most Balanced Gun On The Market
- 30% lighter compared to Fusion PC
- 9X better balanced compared to Fusion PC
- Narrow gun design allows for easy spraying to small areas
Fast and Simple Rebuilds with FX Cartridges
- Fusion FX Cartridges utilize ProConnect technology for a perfect rebuild in seconds
- DuoFlo Valving technology eliminates the need for side seals and provided precision control and mixing
- No side seals means no wear on the mix chamber which provides longer mix chamber life
RapidSwap Mix Chamber for Quick Access
- Mix chamber can be accessed in seconds by just removing the air cap
- Easily swap your mix chamber size to best match your spray application
- Keep a perfect spray pattern by being able to maintain your impingement ports
- Maximize your productivity with the additional output you get through the FX mix chambers due to less pressure drop through the gun
QuickFlex Spray Technology for Easy Conversion
- Users can quickly change between spraying as a ClearShot or Air Purge gun by simply swapping the air piston
- Handle is designed for both Clear Shot or Air Purge use
- Utilizes existing CS Fluid Tubes
Improved Trigger Responsiveness
- Over 30% shorter trigger pull compared to Fusion AP and Fusion PC guns for improved responsiveness and less fatigue
Tool-Less Manual Valves
- Wing nut design allows valves to be open and closed by hand or with a standard nut driver
Hand Straps For an Easier Hold
- Designed to reduce sprayer fatigue from required grip strength when holding the gun
- Easily adjusted or removed by the sprayer
Lightweight Hose Manifold and Easy Access Gun Filters
- Easy access to gun filters without removing hose manifold from the gun
- Lightweight aluminum hose manifold
- Ball checks included to prevent chemical leakage from manifold
Ergonomic Handle for Sprayer's Comfort
- Temperature stable, great strength and heat resistant
- Larger, ergonomic design for improved comfort and reduced fatigue
- Easily removable from the gun body with one screw for simple repair and replacement
