Graco

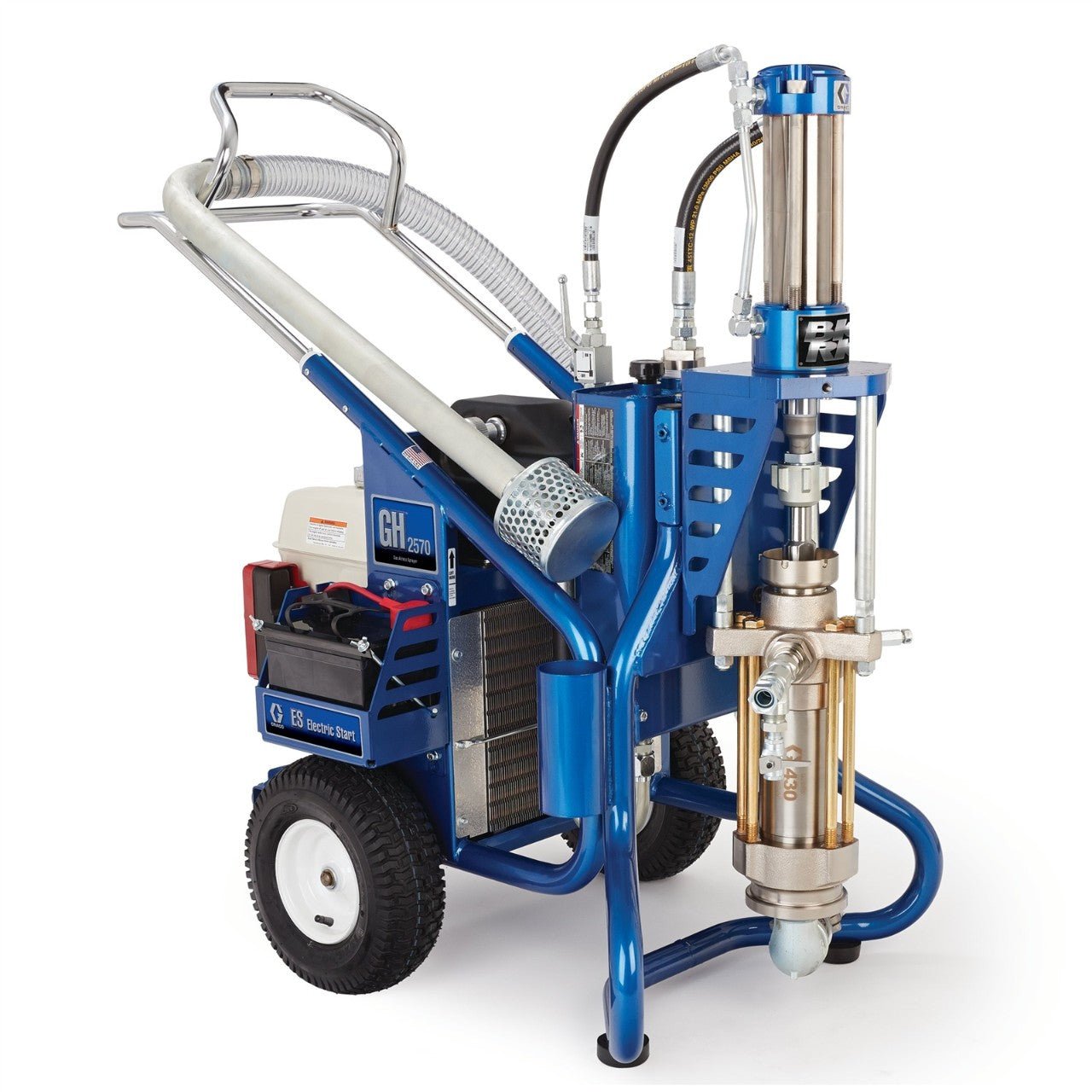

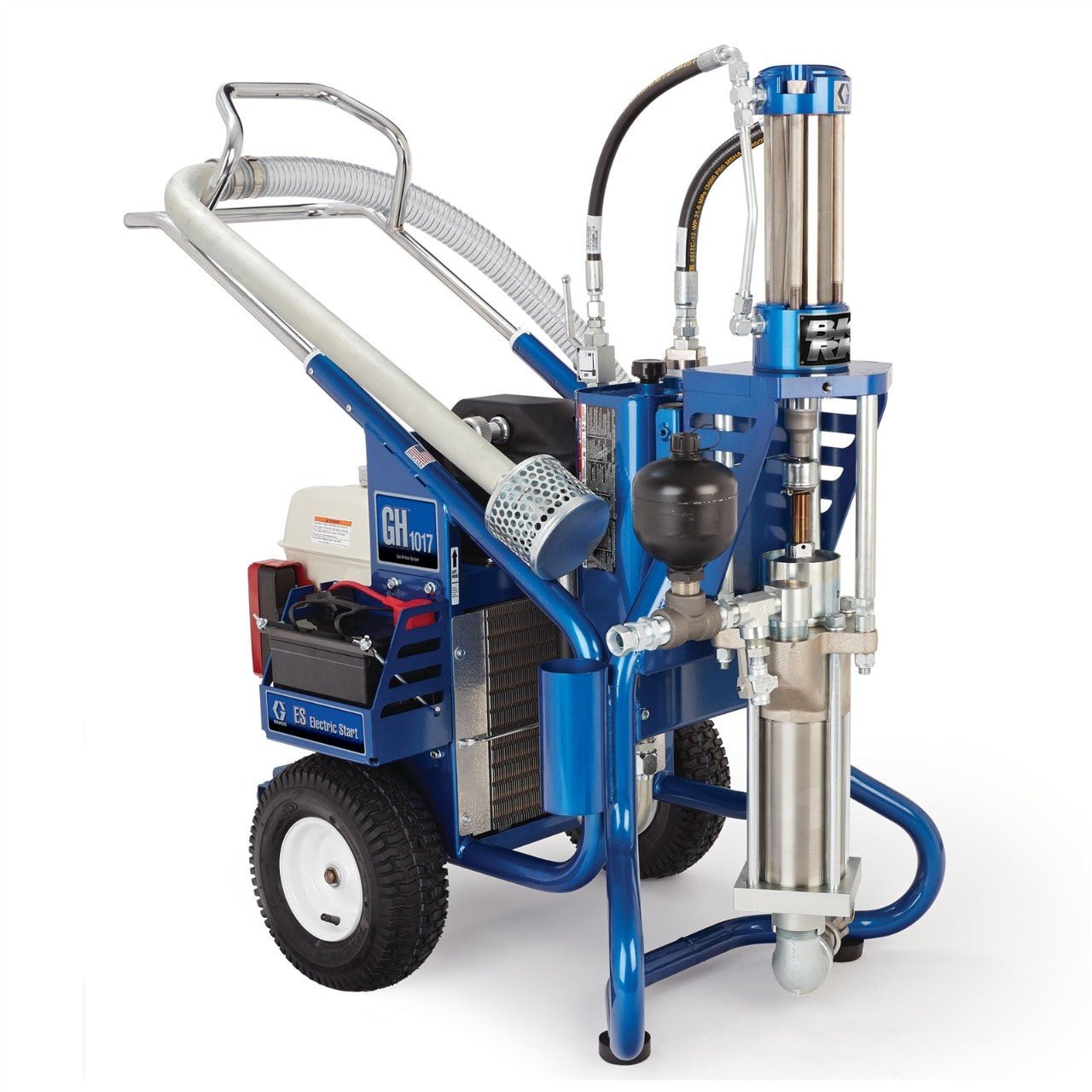

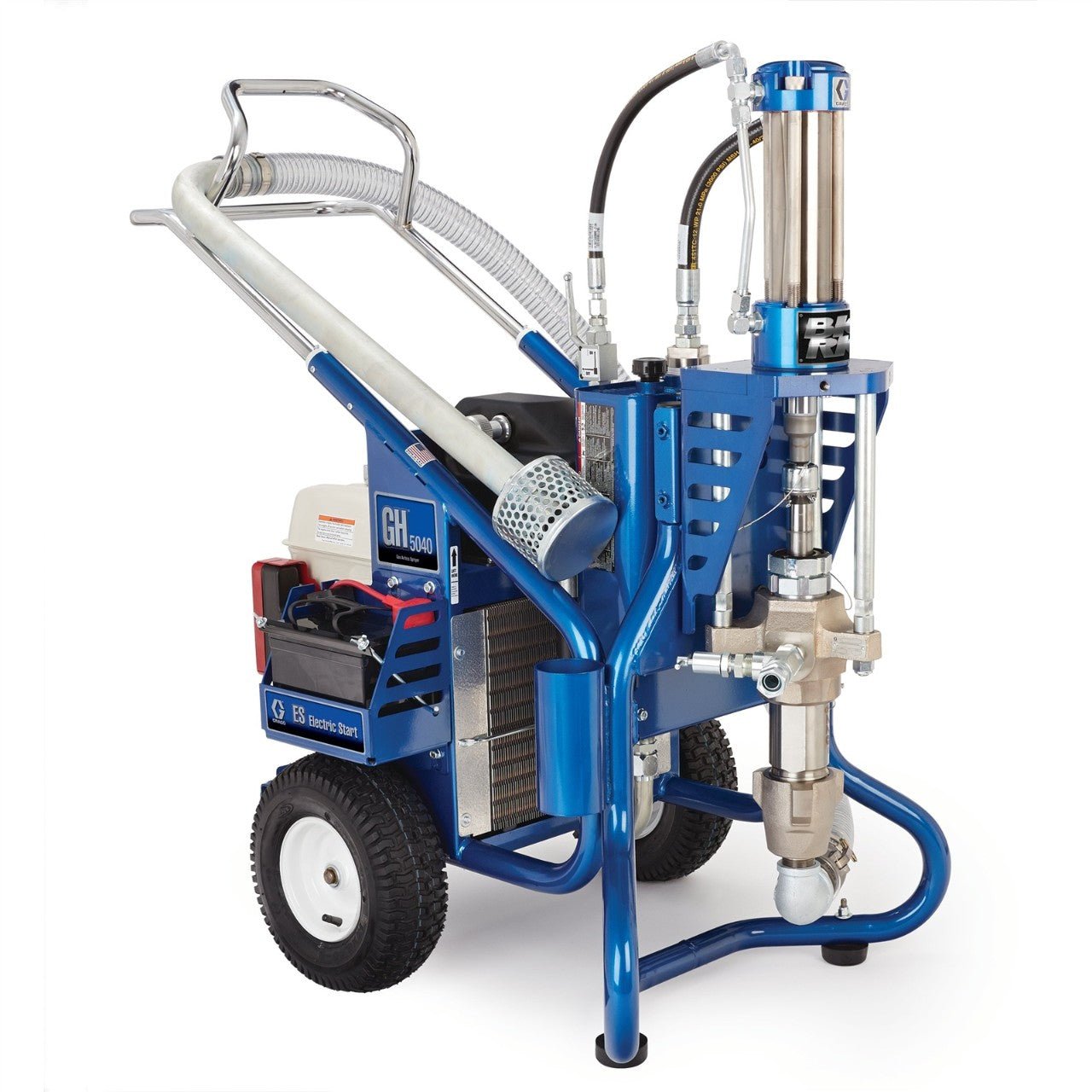

GH 733/GH 1017/ GH 2570/ GH 5040 Gas Hydraulic Sprayers
Sale price
9.69
Power Rating (kW)
Voltage (V)
4000
Max Pressure (psi)
4
Max Flow Rate (lbs/min)
Max Fluid Tempurature (°F)
250
Max Hose Length (ft)
For over 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you require high pressure for long hose runs and hard-to-atomize materials, or high flow rates for heavier coverage, turn to the GH Big Rig sprayers to get the job done!
HONDA ENGINE WITH ELECTRIC START* (*ES models only)
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Backup pull start
- High-capacity, 12 V 18 amp charging system*
RUGGED, HEAVY-DUTY STEEL FRAME
- Welded, heavy-gauge steel construction
- Integrated, fully balanced lift points
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing —corrosion protection
- Multifunction design converts to skid mount in seconds — easily converts to secure skid mount by moving handle to lower frame holes
EXCLUSIVE XTREME PUMP
- QuikChange pump section
- Time-tested durability and performance
- Long-life XtremeSeal™ and leather packings
- Heavy-duty piston rod for long life
- QuikAccess intake valve removes easily for fast repairs
HEAVY-DUTY GRACO HYDRAULIC SYSTEM
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
HEAVY-DUTY COOLING SYSTEM
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy-to-use drain plug
ADDITIONAL FEATURES
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
