Graco
Probler P1
Weight (lbs)
3000
Max Pressure (psi)
Max Flow Rate (lbs/min)
Max Fluid Tempurature (°F)
Purge Type

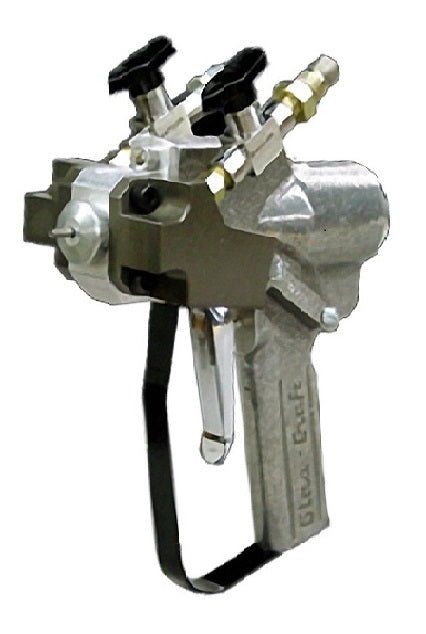

The Probler Gun is used to spray or pour two-component, low viscosity polyurethane foam materials at outputs up to 60 pounds per minute.
Product Features
-
Air-assited full-finger trigger.
-
Patented solvent-free automatic air-purge cleaning system.
-
Used to spray or pour two-component, low viscosity polyurethane foam materials at outputs up to 60 pounds per minute.
-
Trigger actuates a small valve in the gun handle that controls the flow of air into the piston assembly.
-
Air flows through the valve to the front of the piston.
-
Air pressure forces the piston towards the rear of the gun, simultaneously closing off the purge air and moving the mixing chamber to a position where the mixing chamber orifices are aligned with the orifices in both the side block seal and check valve assemblies.
